Bar Back Risers, 30mm Up 25mm Back, BMW R 1250 & R 1200 GS/GSA 2013-2024
Bar Back Risers, 30mm Up 25mm Back, BMW R 1250 & R 1200 GS/GSA 2013-2024
SKU:101-10209
Shipping calculated at checkout
- ALL orders ship out SAME day when placed before 3:30 PST!
Couldn't load pickup availability
Made In USA - All Terra Moto products are proudly designed and manufactured 100% in Southern California

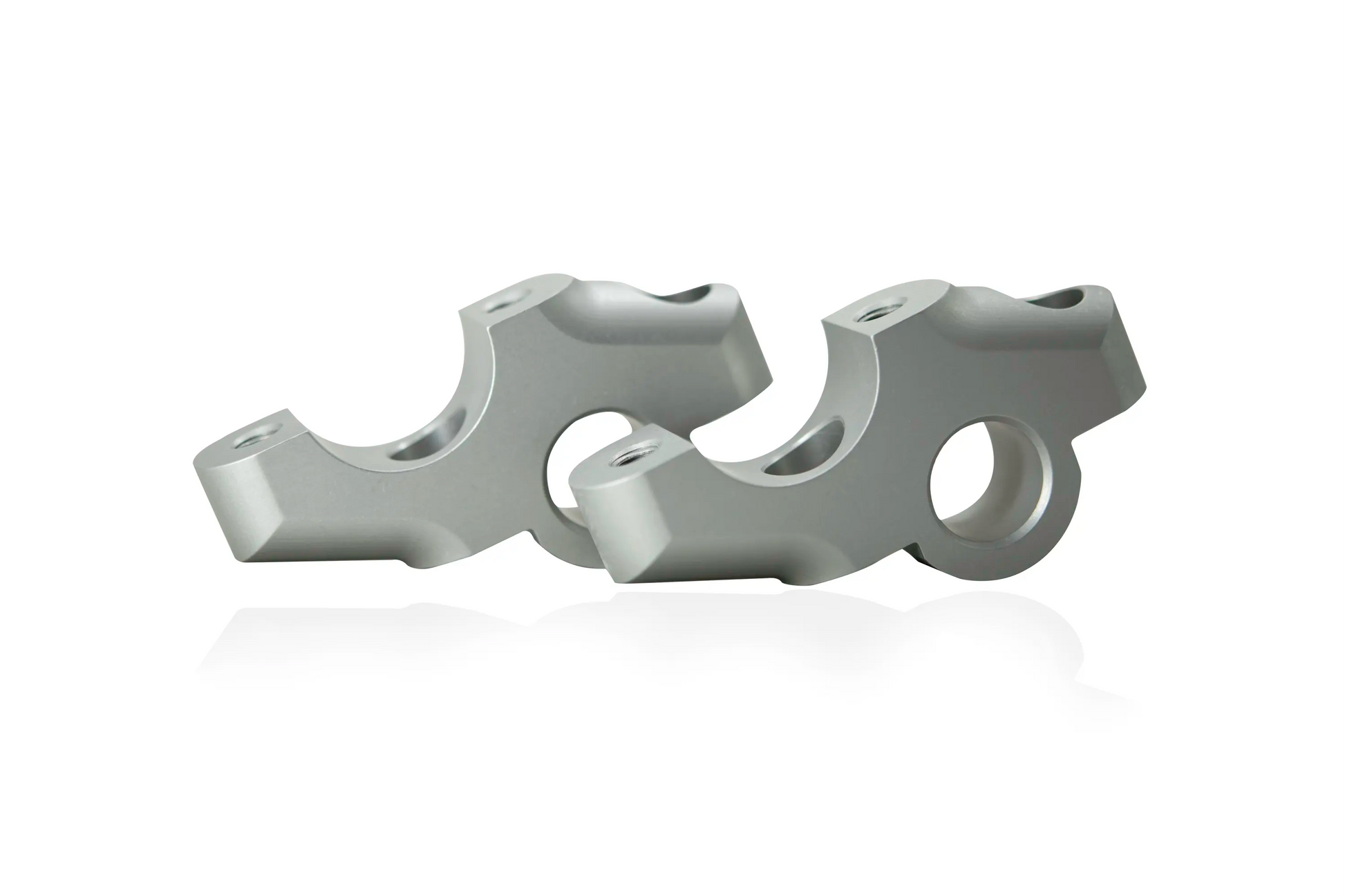

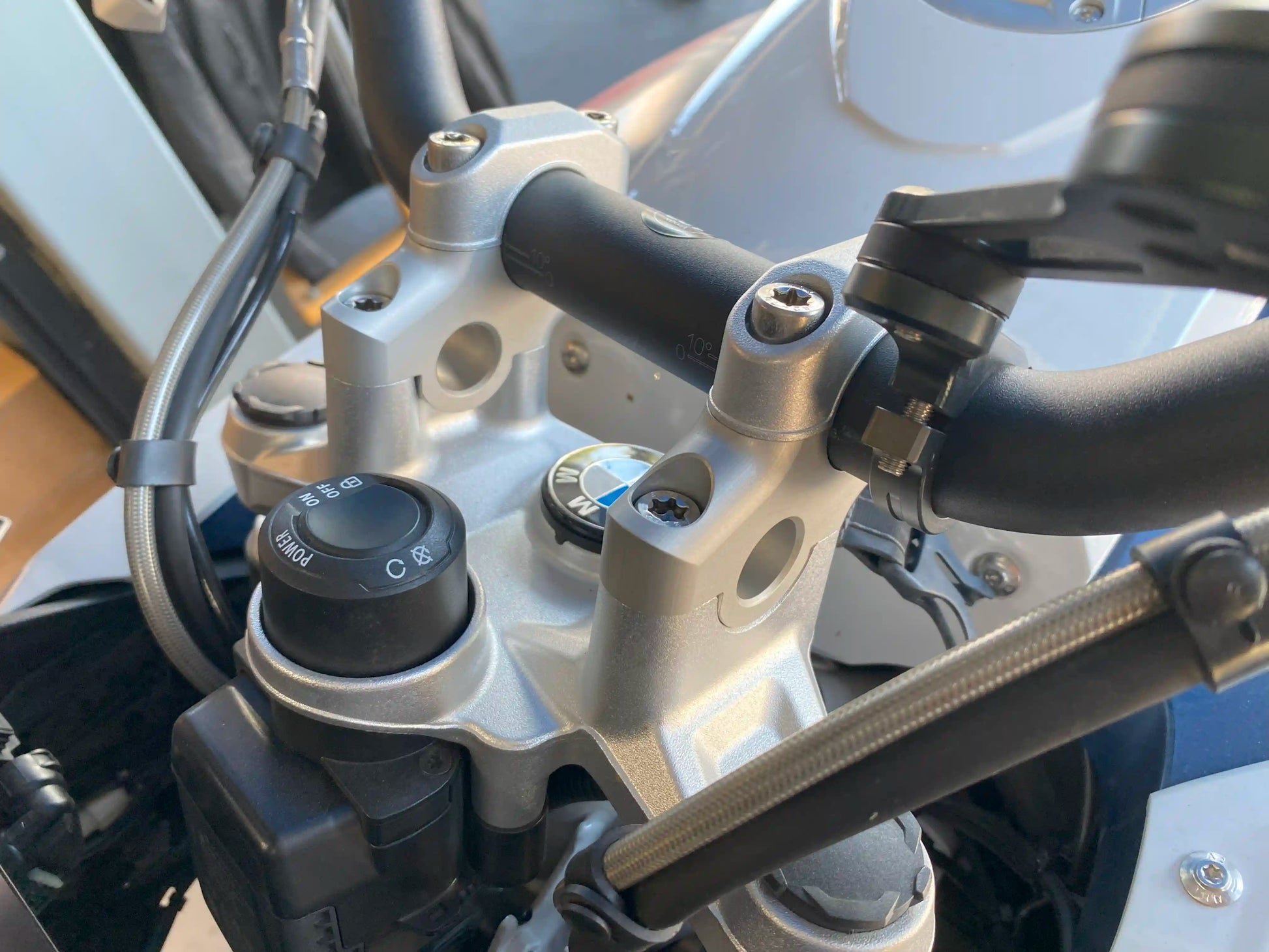

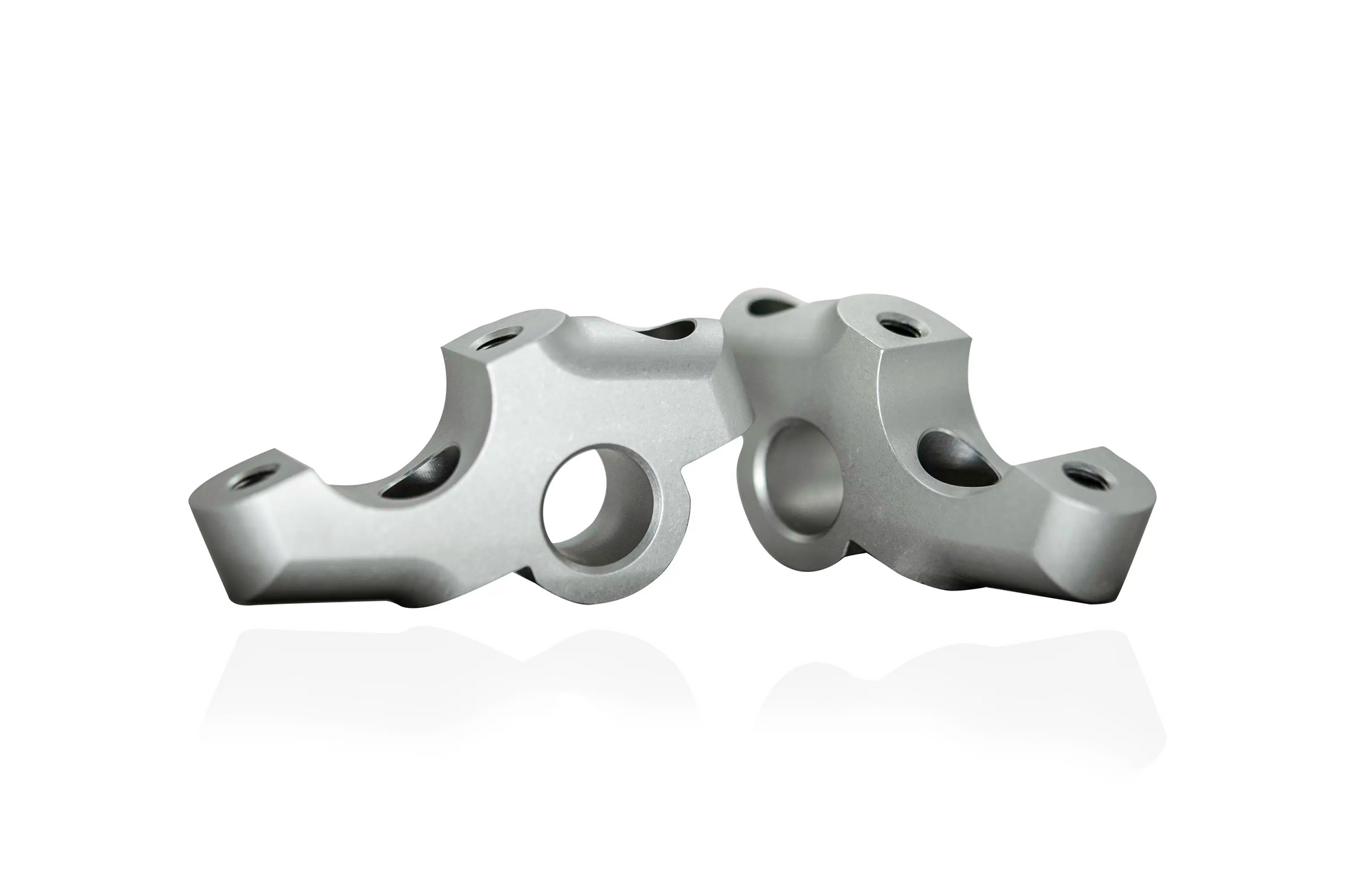

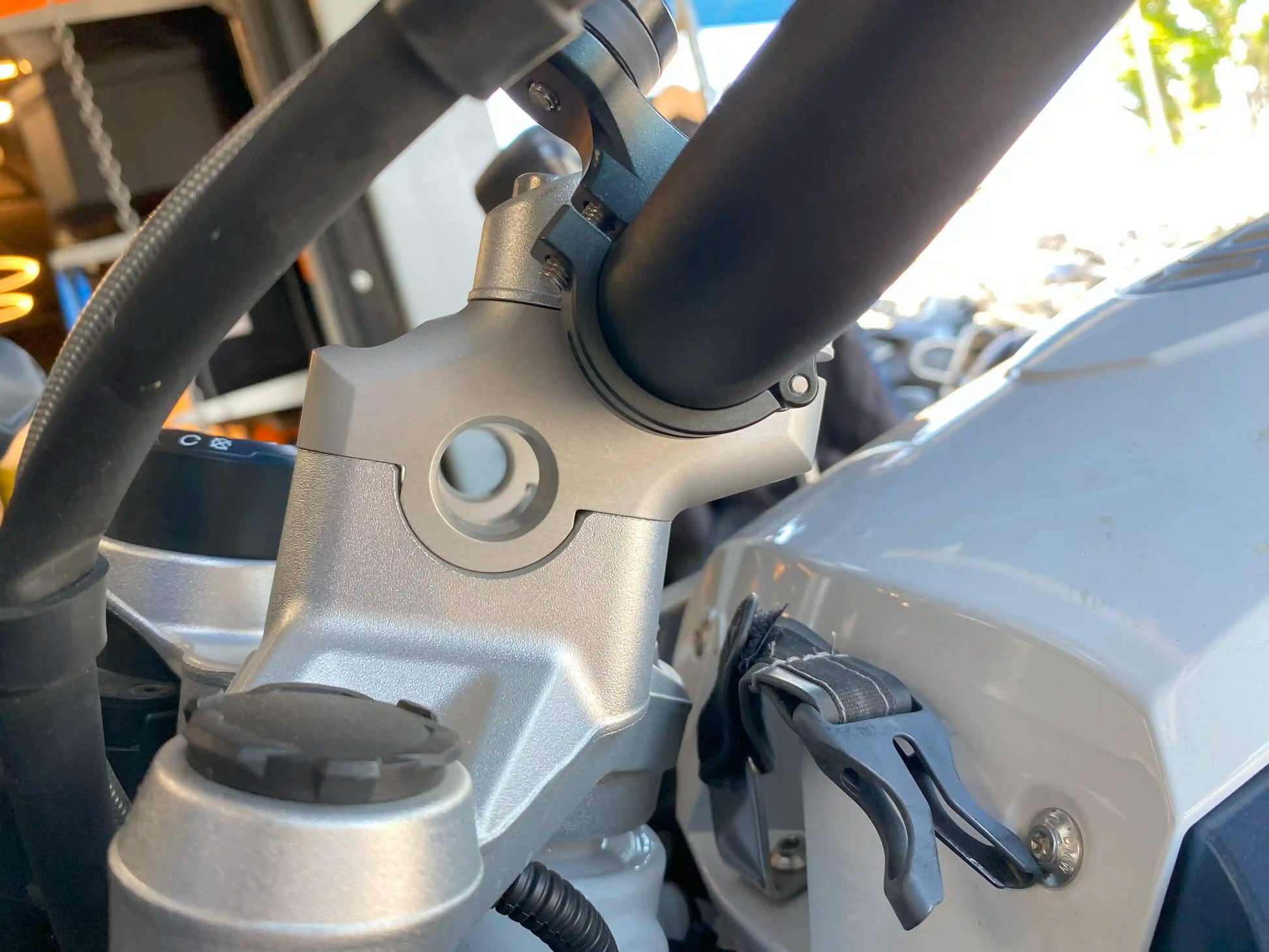

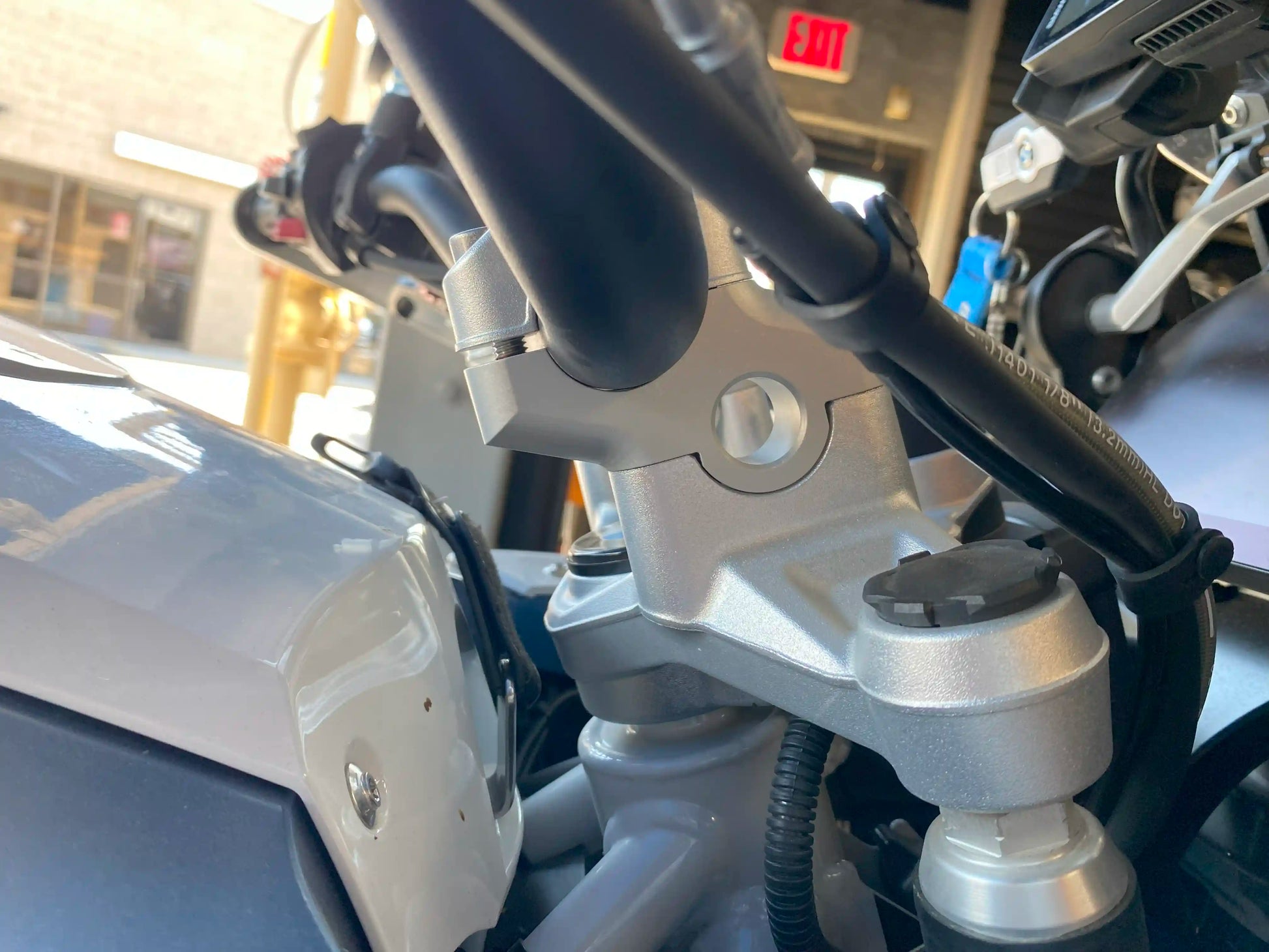

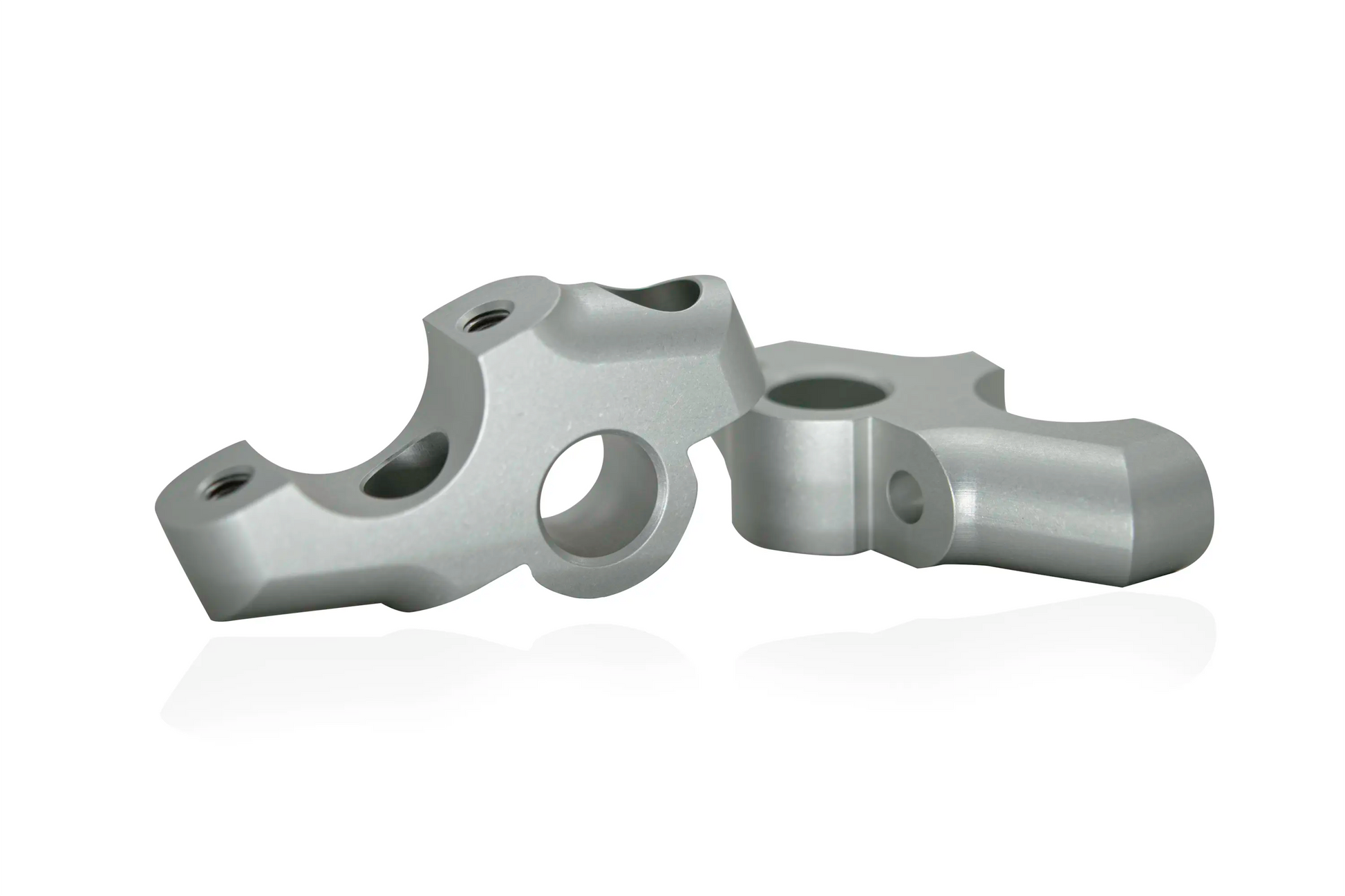

We know what its like get back pain and not feel entirely comfortable on your motorcycle, that's why we designed our risers to increase your comfortability while riding without having to tear your bike apart rerouting cables or adding extenders. The Terra Moto Bar Back Risers raise the bars 30mm (1.18") and bring the bars closer to the riser by 25mm (0.98"). This creates a more comfortable riding position sitting down and standing up by allowing the rider to have a more upright posture and not be hunched over the front of the bike thus putting less load on your back and arms. The Bar Back Risers are 100% CNC machined from solid 6061 T6 aluminum here in Southern California. Cable extenders or rerouting the cables is not necessary, to compensate for the added height all you need to do it slightly change where the cables are zip tied to on the chassis.

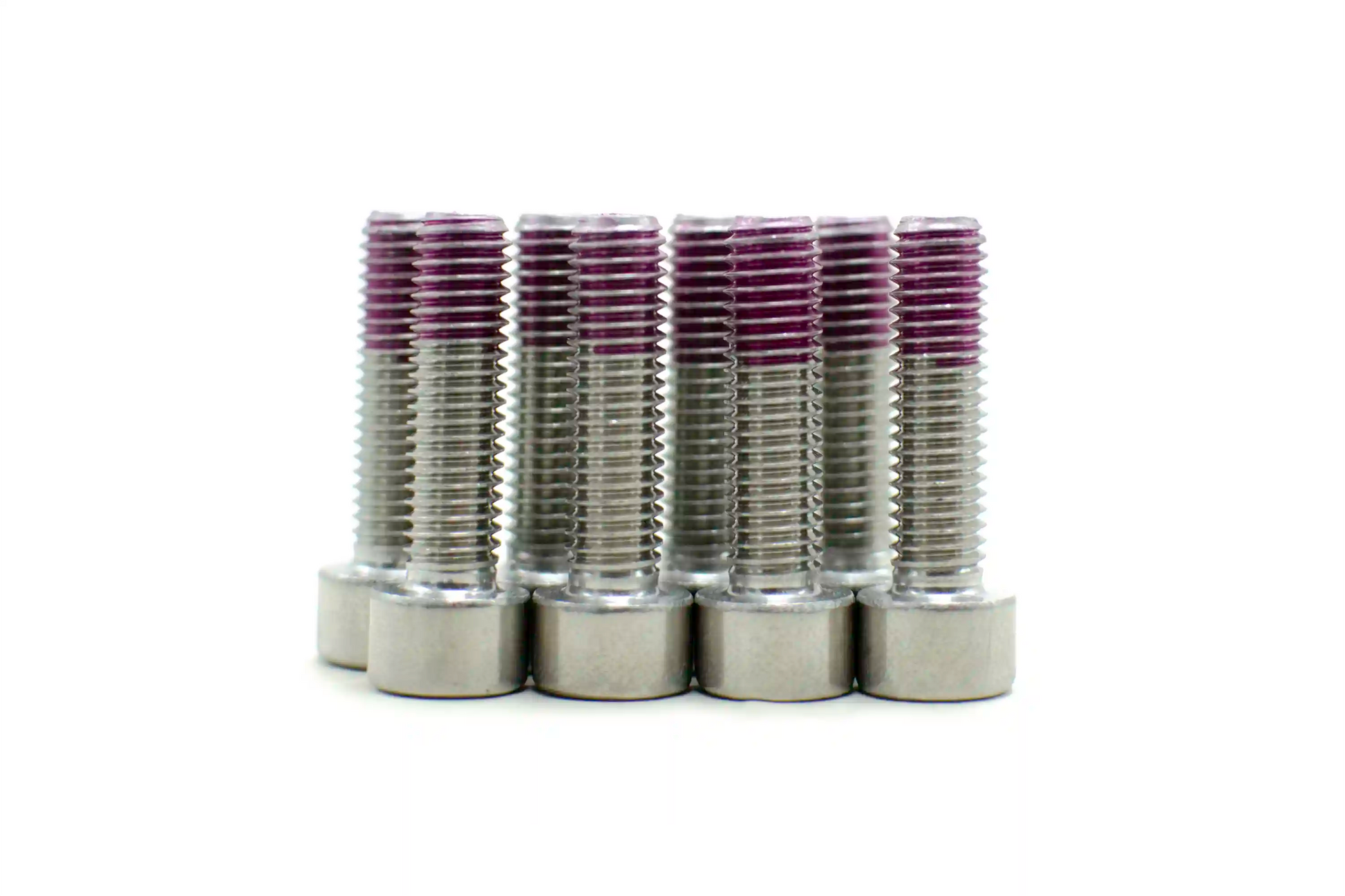

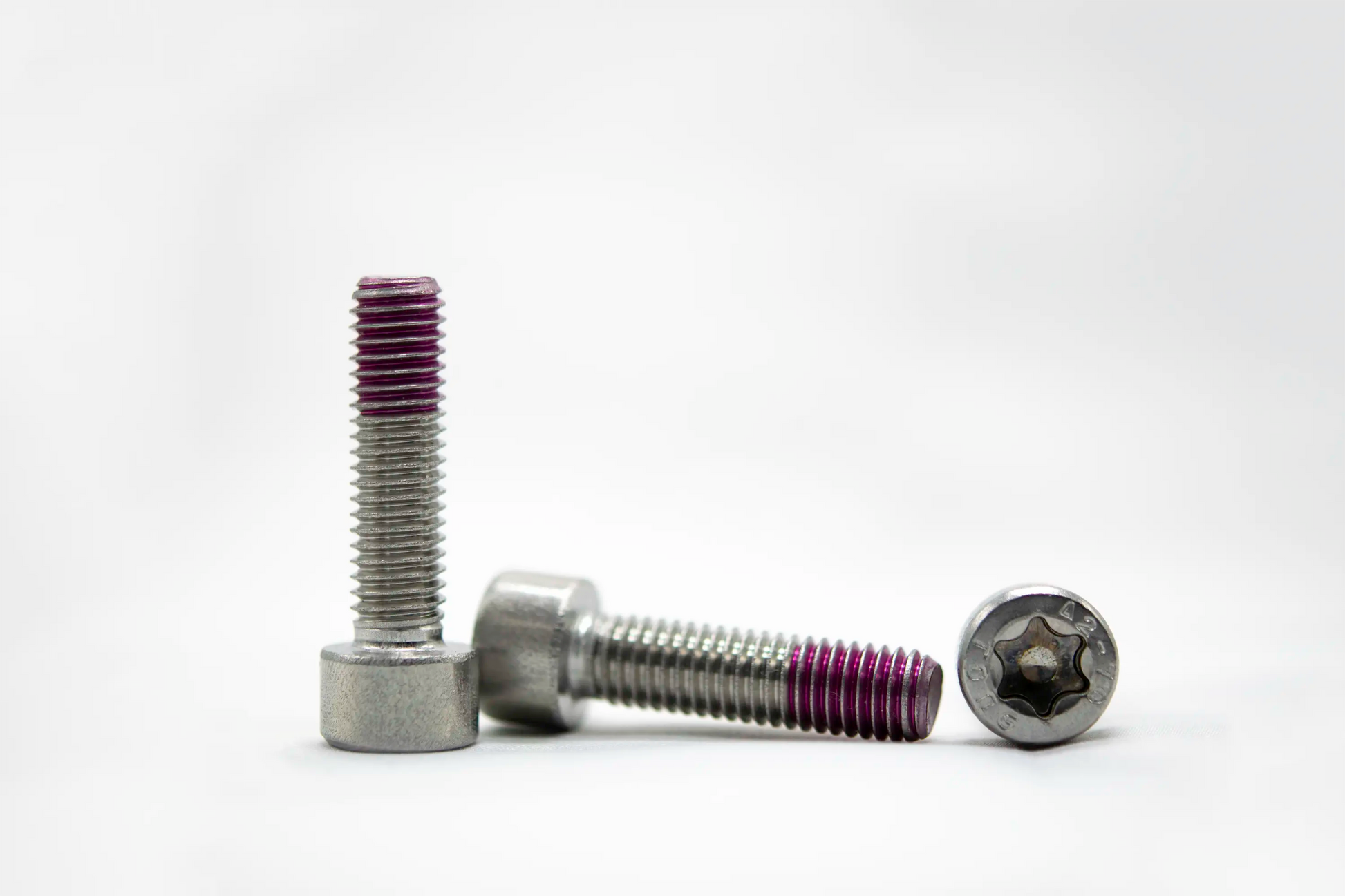

All new hardware is included; 8x A2 stainless steel Torx cap heads are included for their strength and corrosion resistant properties. The end of the bolts are coated with a Methyl ethyl ketone (MEK) patch which helps insulate the fasteners from vibrations, but unlike traditional thread lockers it won't seize the bolt and require a high breakaway torque or gunk up the threads with dried solution. The MEK patch is also good for 5 uses, so if you want to adjust your bars position the MEK patch will retain its properties. The Terra Moto Bar Back Risers for you BMW R 1200/R 1250 GS and GSA are essential to improving your comfort and control.
What's Included?
- 2x 30mm Up 25mm Back Bar Back Risers
- 8x 30mm A2 Stainless Steel Torx T45 Cap Head Bolts with MEK Thread Locking Patch
- 1x 7in Zip Tie
- Detailed Instructions
Product Features:
- Raises Handlebars 30mm (1.18") Closer to rider 25mm (0.98")
- Reduces fatigue on your arms and back
- Better bike control both sitting and standing
- New hardware included (stainless steel Torx w/ locking patch)
- Silver anodize for increased durability
- CNC machined from 6061 T6 aircraft grade aluminum
- 100% Made In USA
Bike Fitment:
- 2019-2023 BMW R 1250 GS & GSA
- 2013-2018 BMW R 1200 GS
- 2014-2018 BMW R 1200 GSA
Let customers speak for us
If you need to raise and move back with out moving cables this is the setup. Installed easily with good directions.
Terra Moto builds super quality products , fits very well in my
BMW GSA 1250.
They ship their own products fast!
Got a pair of these bar risers to alleviate shoulder pain on long rides for my 1250 GSA. Install was easy as expected. Like the finish as it matches the clamps also liked the torx hardware for an original look. Fitment was spot on and installation was a cinch. For reference I got the 1.37 inch risers nothing fancy needed other than some elevation. Haven’t tried it out on a ride yet but I think it will do the trick. Instructions with torque and sequencing was appreciated.I would definitely recommend these risers for the price and quality, very fast shipping too!
Just received my latest purchase of Terra Moto parts for my bike. As always they offer great quality and attention to detail. When I ordered my parts I had almost all of their guards and covers on my bike, when I opened to package they had included that last part as a way of saying thank you for my purchase. What an amazing group of people to get to work with in preparing my bike for some hard riding. I am a little sad, now I have everything they made on my motorcycle. Well, what they make so far that is. B
I recently purchased a set of Oxygen Sensor Guards for my BMW R1250 GSA. This is the third product I have purchased from Terra Moto for the bike. Even though their products are similar, there are only so many ways to mount and protect a certain item, Terra Moto’s always seem a bit better. The material is a little thicker, the attention to detail a bit more, the finish more uniform. And most importantly, when you go to install the parts they fit. Customer service is also top notch. Very pleased.
Installation and Fitment
Installation Instructions
If you have any questions regarding the installation of your parts, do not hesitate to reach out using our Contact Us page.
Bike Fitment
Bike Fitment:
- 2019-2023 BMW R 1250 GS & GSA
- 2013-2018 BMW R 1200 GS
- 2014-2018 BMW R 1200 GSA
